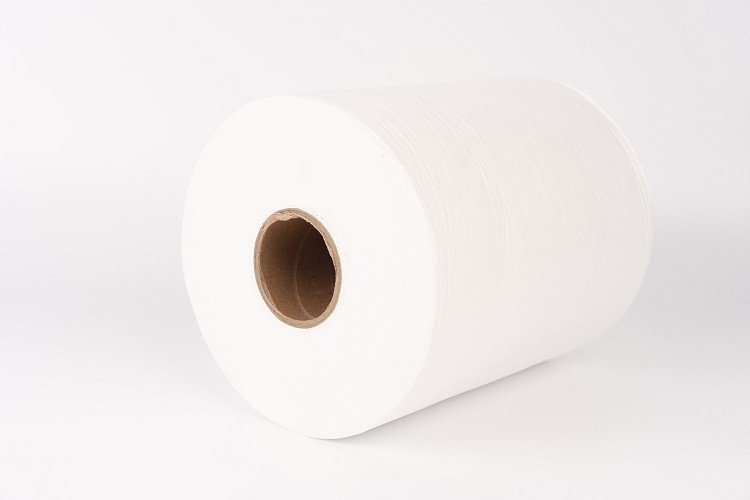

Microfibre Melt Blown Non Woven Fabric

We have included meltblown media in our offering. It differs from other JM bonding processes in that it starts with granules rather than fibers as the primary raw material. This procedure involves melting the raw resin, which is then spun into very tiny fibers under pressure from hot air. These so-called filaments cool and deposit on a conveyor belt, forming nonwovens with very tiny fiber diameters that are perfect for filter media requiring excellent performance and durability.

Send Inquiry

Product Introduction

Product Properties

● 3D reticular structure, large area / weight ratio

● High dust capacity

● Good consolidation, integrity and fluffiness

● Adjustable structure of pores and capillaries

● Hydrophobic / Oleophilic

● Electrostatically charged

● Optional additives

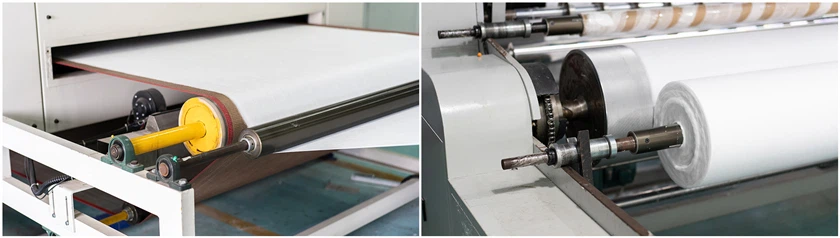

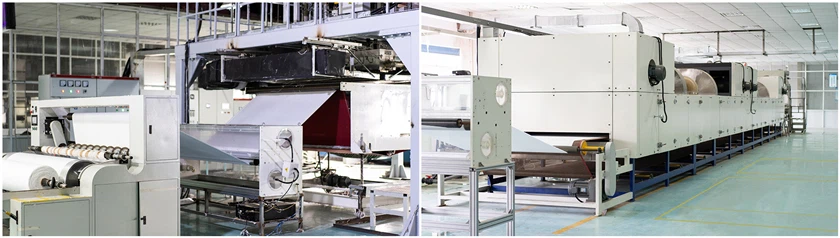

Production Process

Specification

Technical Performance
Raw materials	PP-MB	Grammage	50g~100g/㎡

Item	Basic Weight (g/m²）	Efficiency (%)	Pressure Drop (Pa）	Test Methods
DHC series	50g~100g	30%~65%	--	Test method: TSI 8130 face velocity: 5.33cm/s Size Range: 0.3μm Aerosol: NaCl
General series	10g~40g	65%~97%	Max.3Pa ~ Max.35Pa
Low air resistance series	20g~35g	75%~99.995%	Max.5Pa ~ Max.40Pa
Remark: Customized Specs acceptable.

Application

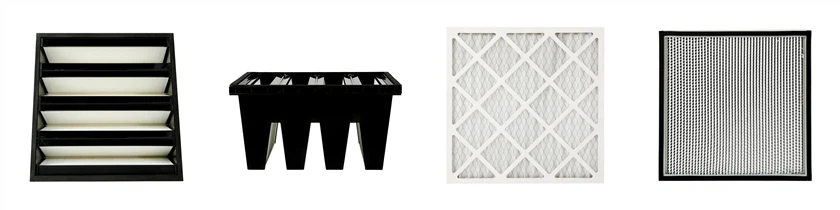

● HVAC Air filter material:

It is typically used as an air filter cloth and is also frequently used to create prefilters and medium-efficiency filters like pocket filters and panel filters that abide by the standards set forth by ASTM, EN, and ISO 16890. These filters are frequently used in vehicle air conditioning systems, central air conditioning systems, cleaning room purification systems, and other medium-high effectivity filtration systems.

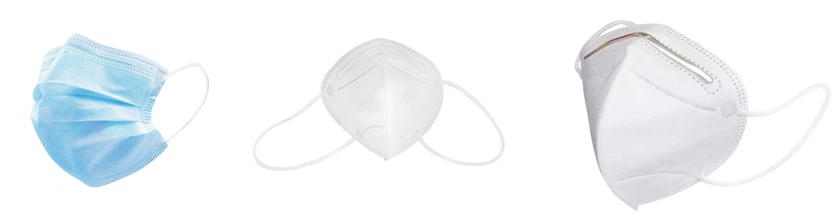

● Face masks/ respirators material

Mask filter material, there are medical and labor insurance two series of products.

Medical mask material can meet the European standard EN14683, bacterial filtration efficiency (BFE) above 99%, particle filtration efficiency (PFE) above 99%, virus filtration efficiency (VFE) above 99%.

The filter material of labor protection mask can meet European standard EN149, American standard NIOSH42 CFR-84, Japanese MOL standard and Chinese standard GB 2626 dust mask.

And it can be made into European standard FFP1, FFP2, FFP3, American standard N95, N99, N100, R95, R99, Japanese standard DS1, DS2, Korean standard KF94, National standard KN90, KN95, KN100, KP90, KP95, KP100 and other levels of protective dust mask and equipment.

● Air purifier filter material

Pictures

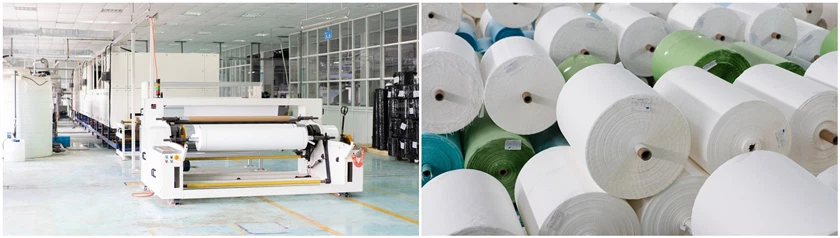

Packing & Storage

Packing: Standard export package.

Our melt blown non-woven fabric will be packed in rolls and protected by stretch films, and stick labels with all the required information including weight, width, item number, etc.

Storage: The product should be placed in the ventilated dry place where is not easy to insolate.

1. Would you provide me a discount if I placed a big order?

A: Depending on the volume of your order, we may provide various discounts.

2. Which industries do you use your products in?

In the automated control industry, our products are widely used, particularly in steel mills, cement plants, sugar refineries, water treatment facilities, and the boiler industry, among others.

3. Do you allow for specific size and design requests?

A: Yes, if the size is suitable.

4. Could you put our company's logo on the nameplate and packaging?

A: Yes, we can do that.

5. What should I do if I don't know what sort of merchandise I need?

A: Relax; all we require from you are your "working pressure," "temperature," and "medium."

Then, we may advise you on the most appropriate product or provide you a copy of our e-catalogue for reference. You pick the appropriate model; all you need to do is supply us with the model number.
