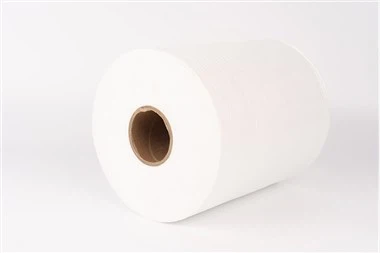

Meltblown 25 Gsm Non-woven Fabric
The most popular specification, 25gsm meltblown, should be utilized for air filters, supply masks for science, etc.
Product Properties
● Self-bonding
● Large area / weight ratio
● Adjustable structure of pores and capillaries
● Hydrophobic / Oleophilic
● High filtration efficiency
● Electrostatically charged
● Optional additives
Production Process
The plastic melt is spun out via a nozzle consisting of a row of several hundred pinholes. Hot air is released from both sides of the nozzle tip, causing the polymer streams to condense into very small filaments. These filaments are dragged onto a filter belt by hot air moving at a high speed. A melt-blown fleece with remarkable filtration and barrier properties is the ultimate result.
Specification
Technical Performance | |||
Raw materials | 100% polypropylene | Grammage | 25g/㎡ |
Fiber diameter | 1-5 microns | Porosity | ≥75% |
Nonwoven technics | Melt blowing | Width | 175mm/195mm/customized |
Item | Basic Weight | Efficiency | Pressure Drop | Test Methods |
JM025K9500N | 25g±3g | Min. 95% | Max. 30Pa | Test method: TSI 8130 |
JM025E12W | 25g±3g | Min. 99.7% | Max. 20Pa | |
JM025H13W | 25g±3g | Min. 99.95% | Max. 25Pa | |
Remark: Customized Specs acceptable. | ||||
Application
● Face masks/ respirators material
There are two series of products for mask filter material, including labor and health insurance.
The EN14683 European standard, which requires virus, particle, and bacterial filtration effectiveness to be all above 99%, can be satisfied by materials for medical masks.
The filter fabric of work safety masks may comply with the widely accepted EN149 specifications in Europe, NIOSH42 CFR-84 criteria in the United States, MOL standards in Japan, and GB 2626 specifications in China.
And it can be made into European general FFP1, FFP2, FFP3, American general N95, N99, N100, R95, R99, Japanese preferred DS1, DS2, Korean popular KF94, National popular KN90, KN95, KN100, KP90, KP95, KP100 and different stages of defensive dirt masks and equipment.
● Others
Air filter material:
It can be used to make mini-pleated filters, panel filters, and pocket filters that comply with the EN779, EN1822, and ISO 16890 standards and are frequently found in central air conditioning systems, cleaning room purification systems, car air conditioning systems, and other medium-high effectiveness filtration systems.
Hygiene material & wipes
Pictures
Packing & Storage
Packing: Our melt blown non-woven fabric will be packed in rolls and protected by stretch films, and stick labels with all the required information including weight, width, item number, etc.
Storage: The product should be placed in the ventilated dry place where is not easy to insolate.
Are you a trade or a manufacturing company?
A: We are a respected manufacturer with a focus on orthopedic and sports products. Additionally, we have direct commercial relationships with our clients.
ODM and OEM come to mind?
Yes, both OEM and ODM are acceptable. The material, color, and style may all be changed, and the basic number will be recommended after negotiation.
Do you permit the usage of our logo?
A: We could print your private logo in answer to your request.
How many packages do you have?
A: Currently, we provide five distinct packaging options, including PE bags, hand bags, zip-lock bags, colorful boxes, and white boxes.
