Merv 8 Filter Material with Wire Mesh
We have 3 series of nonwoven filter media for the HVAC filter.
1）Meltblown: It is a coarse surface, with higher strength than normal melt-blown.
2）Needlepunch nonwoven: It is an electrostatic charging media, high efficiency with low resistance.
3）Activated carbon media: It is an electrostatic charging media, that can be pleated directly.
Product Feature
1) The filtration material is made from non-woven fabrics, and the synthetic fiber;
2) The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times filtration area as the common plane mesh.
3) Paper frame and metal frame are available, which is convenient for replace.
4) The moisture-proof 100%;
5) Heat resistance 80º C
Specification
Filtration | Eff. | Filter object | Thickness | Weight | I.N.P | F.N.P | Dust capacity | Material |
G4 | 95% | ≥5μm | 3±1 | 260±10 | 15±2 | 200 | 1 | PE Nonwoven |
M5 | 45% | ≥1μm | 3±1 | 230±10 | 7±2 | 250 | 1 | PE+PP |
M6 | 65% | ≥1μm | 3±1 | 240±10 | 11±2 | 250 | 1 | PE+PP |
F7 | 85% | ≥1μm | 3±1 | 250±10 | 16±2 | 250 | 1 | PE+PP |
F8 | 90% | ≥1μm | 3±1 | 260±10 | 23±2 | 300 | 1 | PE+PP |
F9 | 95% | ≥1μm | 3±1 | 270±10 | 28±2 | 300 | 1 | PE+PP |
Filtration Class | Eff.. | Filter object | Thickness | Weight | I.N.P | F.N.P | Dust capacity | Material |
M5 | 45% | ≥1μm | 1.0±0.2 | 200±10 | 3 | 300 | 1 | Electrostatic Needle-punched Filter Media |
M6 | 65% | ≥1μm | 1.1±0.2 | 210±10 | 4 | 300 | 1 | Electrostatic Needle-punched Filter Media |
F7 | 85% | ≥1μm | 1.2±0.2 | 230±10 | 6 | 300 | 1 | Electrostatic Needle-punched Filter Media |
F8 | 90% | ≥1μm | 1.5±0.2 | 260±10 | 7 | 350 | 1 | Electrostatic Needle-punched Filter Media |
Filtration | Eff. | Filter object | Thickness | Weight | I.N.P | Benzene | Deodorization performance | Material |
G4 | 45% | ≥5μm | 3±1 | 400±10 | 20 | >90% | >95% | Activated carbon media |
Application
Filter in air-condition system;
Pharmaceutical, hospitals, cosmetics, semiconductor electronic;
Air filtering in precise machinery, food industry etc;
Air filtering of painting line

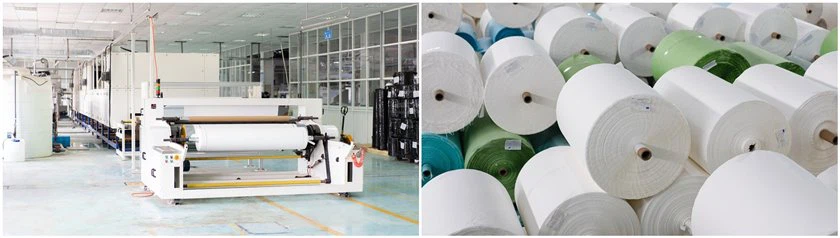

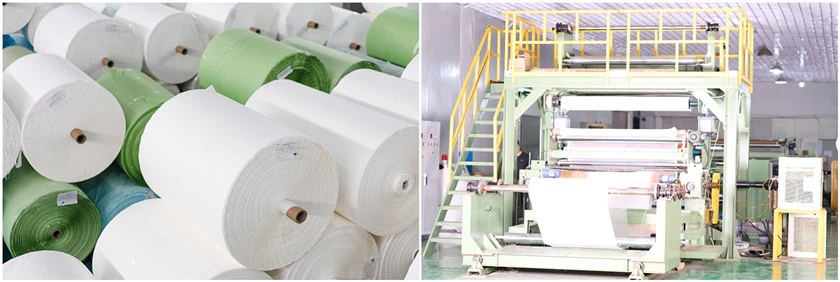

Strong Manufacturability
*8 meltblown production lines, annual capacity is 2000tons
*4 thermal bond nonwoven production lines, annual capacity is 2000tons
*8 slitting machines to meet different size
Professional R&D
*Professional team: CNAS Lab, technical team made up by ex-technician of HV, Camfil;
*Advanced test equipment:Imported TSI8130, EN1822, ASHARE52.2
Storage
Shelf life: 1 year
Storage: The product is fragile, prevent falling and pressure. Dry away from light, store at room temperature
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
Q: How long is your delivery time?
A: The general delivery time is 30-45 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
