Meltblown Raw Material

Melt blown fabric is a kind of non-woven fabrics, which produced by melt blowing, a conventional fabrication method of micro- and nanofibers where a polymer melt is extruded through small nozzles surrounded by high speed blowing gas.
Filters made by this material could meet Ashere 52.2 Standard, EN779, EN1822. Merv series products are available for third-party tests

Send Inquiry

Product Introduction

Product Features

1. Large wide variety of unit microfiber, small fiber diameter (1-5 microns), excessive porosity(≥75%), giant floor filtration area;

2. Special electrostatic treatment, steady static electricity, gorgeous benefits in electrostatic filtration, micro organism resistance, scent adsorption;

3. Low resistance, giant dirt capability and excessive efficiency;

4. Can be composite with a range of aid substrate substances and absorption materials.

Specification

Technical Parameters
Main Material	Polypropylene (PP)	Temperature Resistance	≤100℃
Moisture Resistance (Relative Humidity)	≤100%	Temperature Short Peaks	120℃

Item	Basic Weight (g/m²）	Merv Class	Pressure Drop (Pa）	Test Methods
DHC series	50g~100g	Merv 8-Merv 11	--	Test method: TSI 8130 face velocity: 5.33cm/s Size Range: 0.3μm Aerosol: NaCl
General series	10g~40g	Merv 11- Merv 18	Max.3Pa ~ Max.35Pa
Low air resistance series	20g~35g	75%~99.995%	Max.5Pa ~ Max.40Pa
Remark: Customized Specs acceptable.

Application

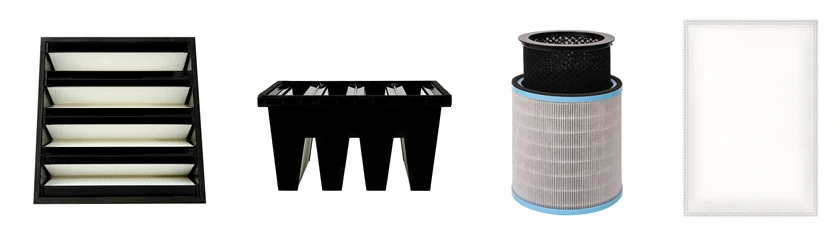

● Air filter material:

It can be used to make pocket filters, panel filters, mini-pleated filters which meet EN779, EN1822, ISO 16890 and are extensively used in car air conditioning system, central air conditioning system, cleansing room purification area and different medium excessive effectivity filtration systems.

● Face masks/ respirators material

It can be used in mask production including BFE99, PFE99, FFP1, FFP2, FFP3, N95, KN95,KF94 which meets the requirement of different standard like GB2626-2019, EN149:2001, EN14683-2019, ASTM etc.

● Floor cleaning system filter material

It can be used as filter material for household and commercial vacuum cleaners.

● Household air purification material

It can be used as filter material for air purifier, humidifier and other household filter appliances.

Pictures

Packing & Storage

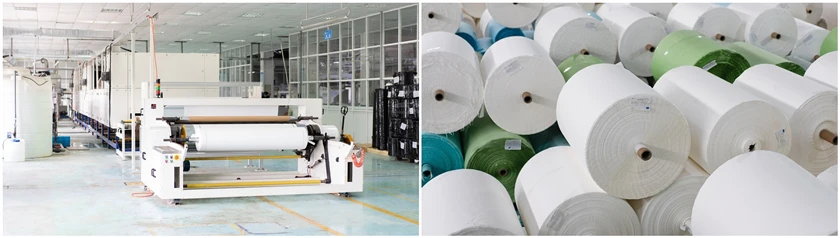

Packing: Our melt blown non-woven fabric will be packed in rolls and protected by stretch films, and stick labels with all the required information including weight, width, item number, etc.

Storage: The product should be placed in the ventilated dry place where is not easy to insolate.
