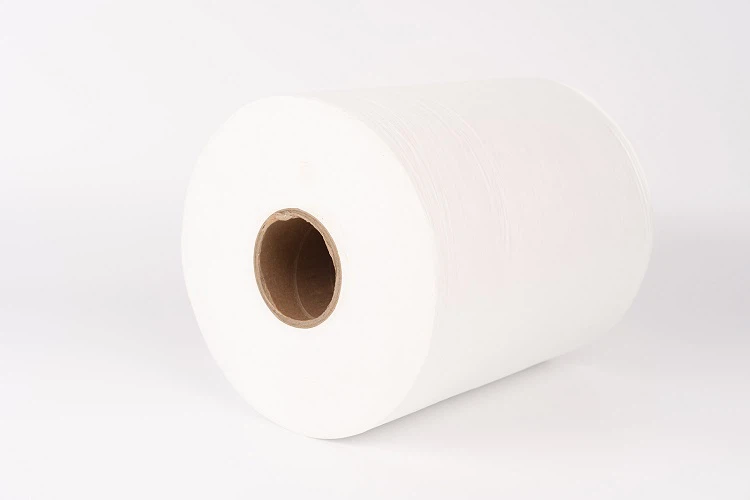

High Efficiency Low Resistance Meltblown

High Efficiency Low Resistance Meltblown

Water electret meltblown non woven is a high-pressure water pump that affords pure water to the nozzle, and the fan-shaped nozzle sprays the melt-blown fabric. The two rubbing to generate static electricity.
The overall overall performance of the water electret meltblown cloth is that the volume of static electrical energy is saturated, and the static electret time is long!
Send Inquiry
Product Introduction

Product Properties

● Self-bonding

● Large area / weight ratio

● Adjustable structure of pores and capillaries

● Hydrophobic / Oleophilic

● High filtration efficiency

● Electrostatically charged

● Optional additives



Advantages Compared with Normal Meltblown

Better adsorption affect on viruses, micro organism and particulate be counted in the air than normal melt-blown non woven, efficiently block the unfold of viruses, micro organism and different hazardous factors in the air, and have higher security performance.

Lower resistance, higher effectivity class

Fewer polypropylene stacking volume

Suitable for International Standards for masks or respirators, EU FFP2 & FFP3 Standard, Level two & Level three Standard etc.


Specification

Technical Performance

Raw materials

100% polypropylene

Grammage

20g~35g/㎡

Fiber diameter

1-5 microns

Porosity

≥75%

Nonwoven technics

Melt blowing

Width

175mm/195mm/customized


Item

Basic Weight
(g/m2

Efficiency
(%)

Pressure Drop
(Pa)

Test Methods

JM020F9W

20g±3g

Min. 75%

Max. 5Pa

Test method: TSI 8130
face velocity: 5.33cm/s
Size Range: 0.3μm
Aerosol: NaCl

JM020E10W

20g±3g

Min. 85%

Max. 8Pa

JM020E11W

20g±3g

Min. 95%

Max. 11Pa

JM025E12W

25g±3g

Min. 99.5%

Max. 20Pa

JM025H13W

30g±3g

Min. 99.95%

Max.30Pa

JM035H14W

35g±3g

Min. 99.995%

Max. 40Pa

Remark: Customized Specs acceptable.


Application

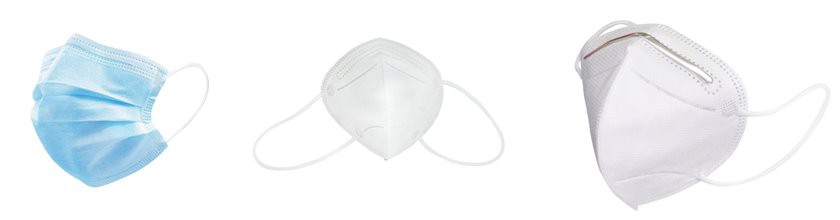

● Face masks/ respirators material

Mask filter material, there are scientific and labor insurance plan two sequence of products.

Medical masks cloth can meet the European general EN14683, bacterial filtration effectivity (BFE) above 99%, particle filtration effectivity (PFE) above 99%, virus filtration effectivity (VFE) above 99%.

The filter fabric of labor safety masks can meet European general EN149, American preferred NIOSH42 CFR-84, Japanese MOL fashionable and Chinese widespread GB 2626 dirt mask.

And it can be made into European widespread FFP1, FFP2, FFP3, American widespread N95, N99, N100, R95, R99, Japanese fashionable DS1, DS2, Korean general KF94, National wellknown KN90, KN95, KN100, KP90, KP95, KP100 and different stages of shielding dirt masks and equipment.

2

● Air filter material:

It can be used to make pocket filters, panel filters, mini-pleated filters which meet EN779, EN1822, ISO 16890 and are widely used in automobile air conditioning system, central air conditioning system, cleaning room purification field and other medium high efficiency filtration systems.

3

● Hygiene material & wipes

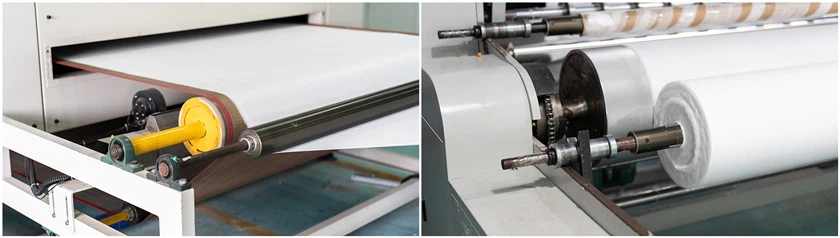

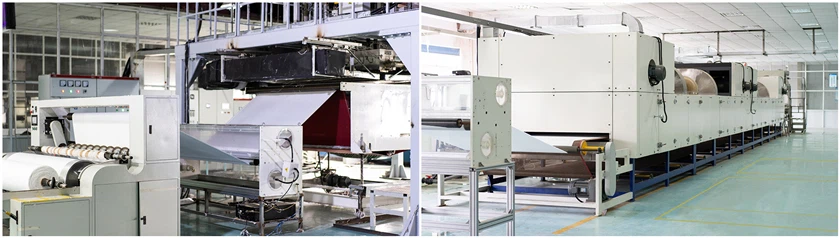

Pictures


5


Packing & Storage

Packing: Our melt blown non-woven fabric will be packed in rolls and protected by stretch films, and stick labels with all the required information including weight, width, item number, etc.

Storage: The product should be placed in the ventilated dry place where is not easy to insolate.


FAQ

Q1. Are you producer or trade company?

A.We are producer and there are three household factories in Shanghai and Jiaxing


Q2. Can you produce conveyor as our requirements?

Yes, OEM is available. We have specialist group to do some thing what you prefer from us.


Q3. Is the sample available?

Yes, we are offering free of samples are available for you to take a look at the high-quality as soon as examined after 1~2day.


Q4. Is there the merchandise examined before shipping?

Yes, of course. All of our conveyor belt we all will has been 100%QC before than shipping. We check every batch each and each and every day.


Q5. How your great guarantee?

We have one hundred percentage nice assurance to customers. We will be responsible for any excellent problem.


Q6. Can we go to your manufacturing facility formerly than region the order?

Yes, Very welcome that ought to be quality to set up excellent relationship for business.


Q7. Can we be your agent?

Yes, welcome to cooperation with this. We have massive merchandising in the market now. For the important factors please contact with our distant locations manager.
